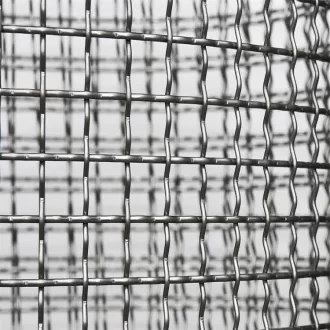

Crimped Wire Mesh

The crimped wire mesh is woven by pre-crimped metal wires through the method of double crimp or lock crimp. Crimped wire mesh is also called crimped woven wire mesh, The pre-crimping weaving method can ensure an accurate opening area and make the structure stable. Crimped mesh can also be used in the food industry and industrial applications. Lightweight crimped mesh can be used as barbecue grill mesh, stair railings, fences, construction grilles, and decorations.

Crimped wire mesh commonly used in industries with strict requirements on stability. For example, the food industry is used as a net basket for food, and the chemical industry is used for screening and filtering in acid and alkali environments. Electroplating industry is used as pickling net, petroleum industry as mud net, architectural decoration as decorative net, oil-water separator in automobile industry, etc. Stainless steel has been widely used in mining, chemical industry, medicine, petroleum, metallurgy, machinery, protection, construction, handicrafts and other industries in crimped wire mesh.

Wire Mesh Weave Styles

Wire mesh weave styles refer to the different patterns created by interweaving wires in a mesh fabric. Some common wire mesh weave styles include:

Plain weave: This is the most common and simplest type of weave, where the wires are interwoven in an alternating over-under pattern.

Twill weave: This weave has a diagonal pattern created by passing the wire over two or more weft wires and then under one or more weft wires.

Dutch weave: This is a tight weave where the weft wires are closely spaced together, and the warp wires are relatively large in diameter. This creates a strong and durable mesh that is often used for filtration.

Reverse Dutch weave: This is similar to the Dutch weave, but the positions of the warp and weft wires are reversed. The warp wires are closely spaced together, and the weft wires are relatively large in diameter. This weave creates a high-strength mesh that is often used for industrial applications.

Twilled Dutch weave: This is a combination of twill weave and Dutch weave. The weft wires are closely spaced together, and the warp wires are relatively large in diameter. The pattern created by this weave is strong and dense, making it ideal for filtration and separation.

Plain Dutch weave: This is similar to the Dutch weave, but with a larger warp wire diameter and a smaller weft wire diameter. This creates a fine mesh that is often used for filtration and sieving applications.

Crimped weave: This is a weave where the wires are crimped before weaving to create a wavy pattern. This creates a more flexible mesh that is often used for architectural and decorative applications.

Woven Wire Cloth Crimp Styles

Woven wire cloth crimp styles are various patterns of wires that are used to interlock and lock the mesh weave of woven wire cloth. Crimping is the process of bending the wires at predetermined points to create a mesh pattern that is stable and strong. There are several types of crimp styles used in woven wire cloth, and each style offers unique features and benefits. Here are some of the most common woven wire cloth crimp styles:

Plain Crimp: This is the most basic crimp style and involves the wires being woven over and under each other without any additional crimping. This style is ideal for lightweight applications where strength is not a primary concern.

Intermediate Crimp: This crimp style involves the wires being crimped at every intermediate intersection point. This results in a stable and strong mesh weave that is ideal for heavy-duty applications such as screening and filtration.

Lock Crimp: In this crimp style, the wires are crimped at every intersection point, and the crimped wires are locked together by weaving a third wire over and under the crimped wires. This style offers maximum stability and strength and is ideal for applications that require high levels of tension.

Flat Top Crimp: In this style, the wires are crimped at the top of the mesh weave to create a flat surface. This style is ideal for applications where a smooth and level surface is required, such as in architectural and decorative applications.

Rectangular Crimp: This crimp style involves the wires being crimped at every intersection point to create a rectangular shape. This style offers maximum stability and is ideal for heavy-duty applications such as mining and quarrying.

Double Crimp: This crimp style involves the wires being crimped in both directions, creating a stable and strong mesh weave. This style is ideal for applications that require high levels of tension and stability, such as in the construction of fencing and barriers

Application:

Galvanized wire mesh partitions for security and fencing purposes

Quarry Screen Rolled Wire Mesh

Edged rolled manganese steel mesh, plain, with a uniform and durable wave structure, for mine screening and screening hooked

Barbecue Mesh, Woven Wire Mesh Square Hole Curled Wire for Barbecue Grill Mesh

Wire mesh flooring for hog farming, heavy duty rolled wire mesh, used as flooring for animal cages in the agricultural farming industry.

Specification

Grid width: max. 2000 mm.

Braiding method: Curl first and then braid.

Surface treatment: pickling passivation, polishing, galvanizing.

frame:

trimming;

curved edges;

Hook with sheath.

Package:

Sheets on pallets or in wooden boxes;

Rolls wrapped in waterproof paper and plastic film.
